ANTRACK & Bitcoin Miner S19 Pro Hyd. Package
ANTRACK & Bitcoin Miner S19 Pro Hyd. Package
Couldn't load pickup availability

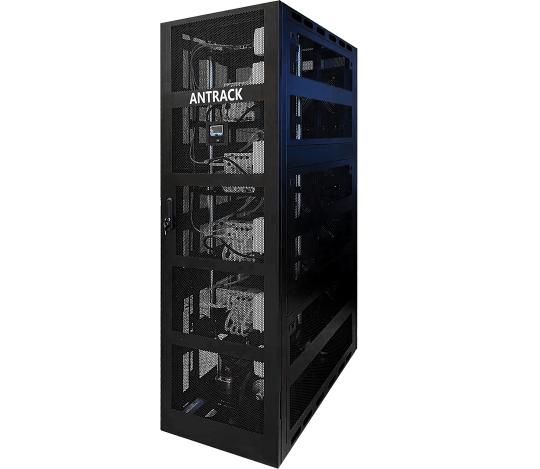

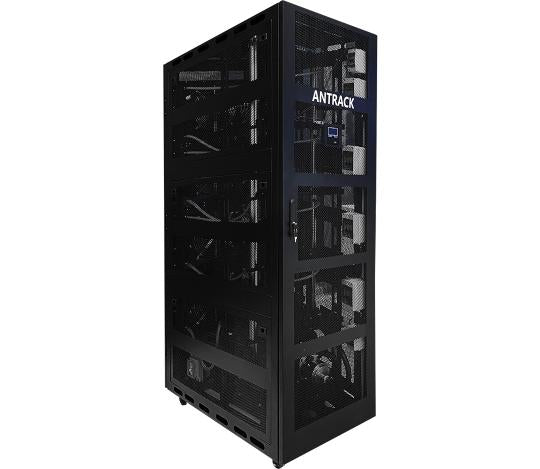

Specification Details For ANTRACK
| Product Glance | |
| Model | ANTRACK |
| Version | V1 |
| Capacity | 4 units ANTMINER (Hydro) |
| Maximum load, kW | 24 |
| Detailed Characteristics | |
| Hardware configuration | |
| Size (length*width*height), mm (without package) | 1000*600*2100 |
| Size (length*width*height), mm (with package) | 2260*1130*780 |
| Net weight, kg (without package) | 207 |
| Gross weight, kg (with package) | 300 |
| Network connection mode | EJ45 Ethernet 10/100M |
| Power supply | |
| Power supply AC input voltage, Volt(1-1) | 380~415 |
| Power supply AC input frequency range, Hz | 50~60 |
| Power supply AC Input current, Amp(1-2) | 80 |
| Fan | |
| Rated power, W | 120 |
| Noise, dBA@1m | 68 |
| Size (Length*Height*Thickness), mm | 280*280*80 |
| Pump | |
| Rated power, W | 450 |
| Noise, dBA@1m | 55 |
| Size (Length*Height*Thickness), mm | 360*210*268 |
| Plate Heat Exchanger | |
| Maximum heat exchange power, kW | 30 |
| Size (Length*Width* Height), mm | 305*106*64 |
| Diameter of water pipe connector, mm | DN20 |
| Environment requirements | |
| Ambient temperature, °C(1-3) | 15~45 |
| Water flow, L/min | 32.0~40.0 |
| Water pressure, bar | ≤3.5 |
| Working fluid(1-4) | Antifreeze (10%) |
| Liquid PH | 7.8~8.5 |
| Storage temperature, °C | -20~70 |
| Operation humidity(non-condensing), RH | 10~90% |
NOTE:
(1-1) Caution: Wrong input voltage may probably cause miner damaged.
(1-2) Three-phase AC input.
(1-3) Please keep the ANTRACK V1's ambient temperature between 15 °C and 45 °C. Maintain at least 1 m of clearance in front of and behind the unit, and ensure adequate room ventilation to prevent exhaust-air recirculation. Under normal operation, the miner's inlet-water temperature will be about 5 °C above ambient. When operating with older models (e.g. S19 Hyd., T19 Hyd., S19 Pro Hyd., S19 Pro+ Hyd., T19 Pro Hyd., S19 XP Hyd.), ensure the ambient temperature does not exceed 35 °C.
(1-4) If the water conductivity is ≥100 μs/cm, the fluid must be replaced. The water conductivity is less than 20 μs/cm when the system is running at the first time.

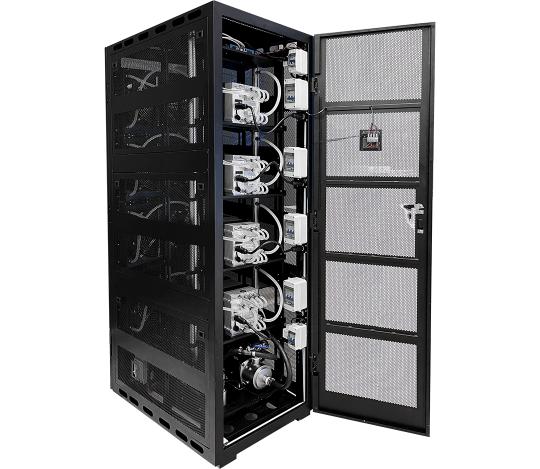

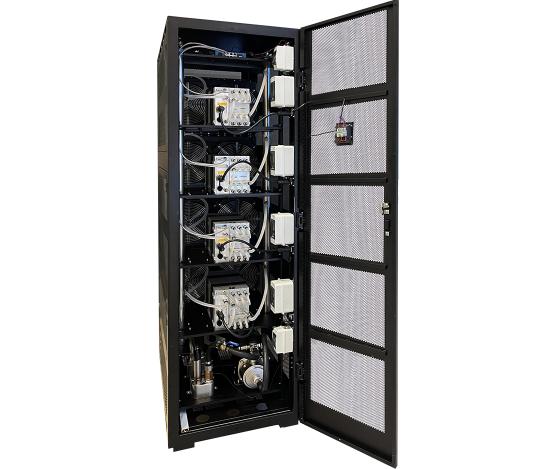

PS: An ANTRACK unit features four rack slots, each equipped with one network cable and one power cable tailored for Hydro-cooling miners. The unit also includes a water pump, eight fans, a heat exchanger and a plate heat exchanger.
For smooth operation of the ANTRACK system, please prepare the following additional items:
• A three‑phase, five‑core 380–415 V AC power cable (6AWG)
• An Ethernet cable
• 20 L of 10 % antifreeze

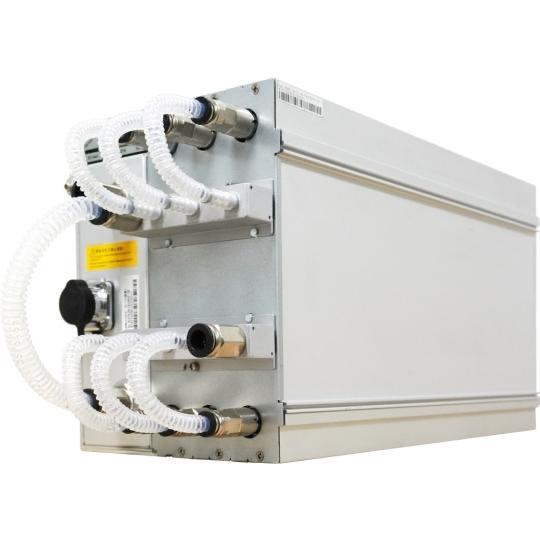

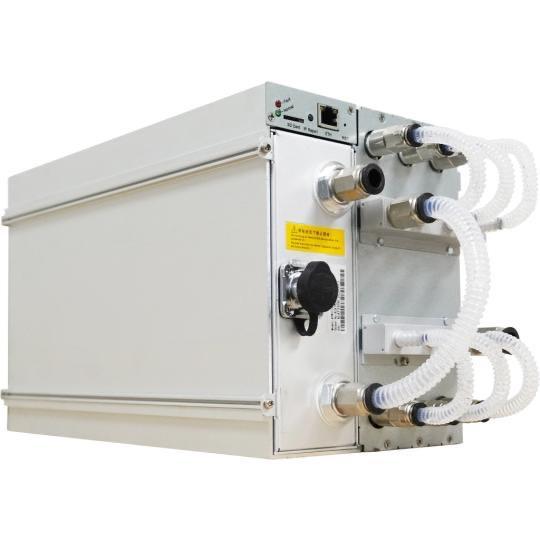

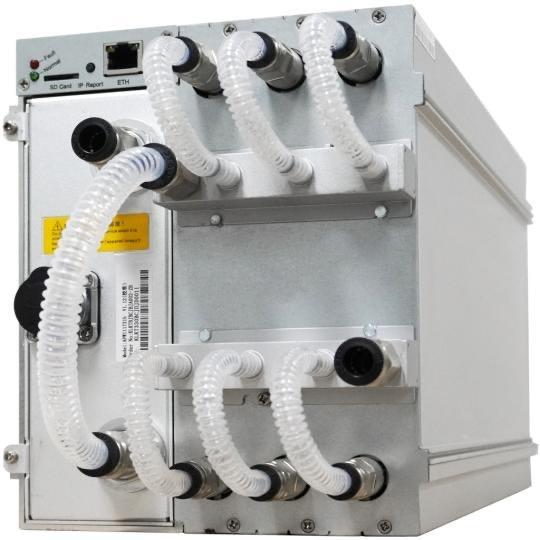

Specification Details For S19 Pro Hyd.
| Product Glance | |
| Model | S19 Pro Hyd. |
| Version | 208-A |
| Algorithm | Cryptocurrency | SHA256 | BTC/BCH/BSV |
| Typical Hashrate, TH/s(1-1) | 184 |
| Power on wall @35°C(1-2), Watt(1-1) | 5428 |
| Power efficiency on wall @35°C(1-2), J/TH(1-1) | 29.5 |
| Detailed Characteristics | |
| Power Supply | |
| Power supply AC Input voltage, Volt(2-1) | 380~415 AC |
| Power supply AC Input Frequency Range, Hz | 50~60 |
| Power supply AC Input current, Amp(2-2) | 12 |
| Hardware Configuration | |
| Networking connection mode | RJ45 Ethernet 10/100M |
| Miner Size (Length*Width*Height, w/o package), mm | 336*175.5*208 |
| Miner Size (Length*Width*Height, with package), mm | 570*316*430 |
| Net weight, kg | 13.0 |
| Gross weight, kg | 15.6 |
| Environment Requirements | |
| Inlet water temperature, °C | 35 |
| Water flow, L/min | 8.0~10.0 |
| Water pressure, bar | ≤3.5 |
| Working fluid(2-3) | Deionized water/Pure water/Antifreeze |
| Storage temperature, °C | -20~70 |
| Operation humidity(non-condensing) , RH | 10~90% |
NOTE:
(1-1) The Hashrate value, Power on wall, and Power efficiency on wall are all typical values. The actual Hashrate value fluctuates by ±10%, and the actual Power on wall and Power efficiency on wall fluctuate by ±5%.
(1-2) Inlet water temperature.
(2-1) Caution: Wrong input voltage may cause server damaged.
(2-2) Three-phase AC input, 10 A per wire.
(2-3) If the water conductivity is ≥100 μs/cm, the fluid must be replaced. The water conductivity is less than 20 μs/cm when the system is running at the first time.
PS: Please note that the Hydro-cooling miners are shipped without power cables.
