ANTRACK & Bitcoin Miner T19 Hyd. Package
ANTRACK & Bitcoin Miner T19 Hyd. Package
Couldn't load pickup availability

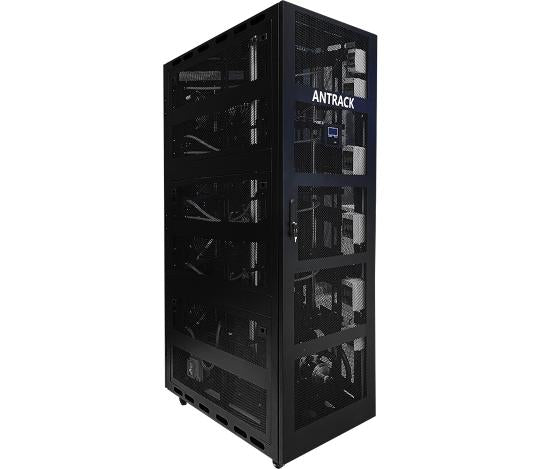

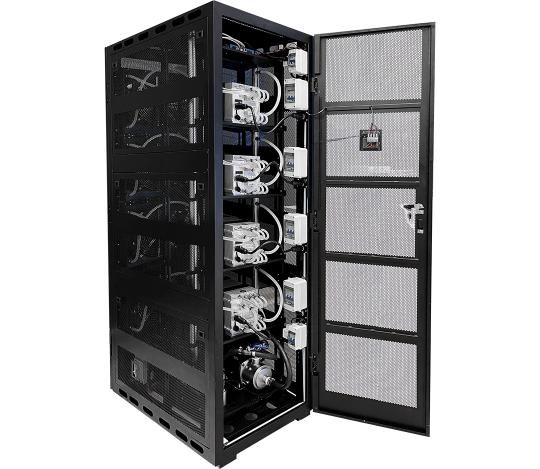

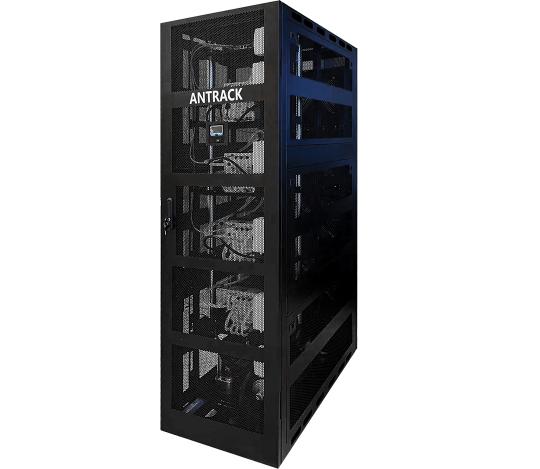

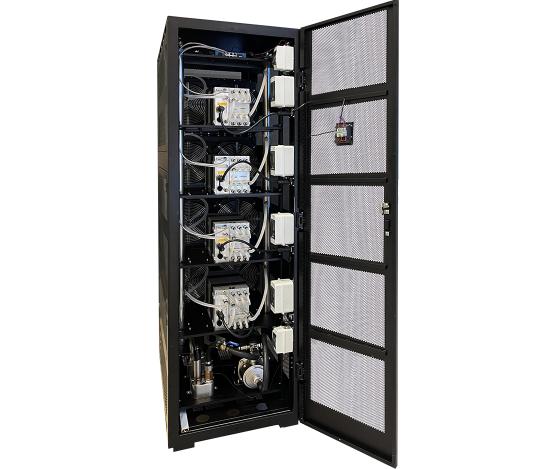

Specification Details For ANTRACK
| Product Glance | |
| Model | ANTRACK |
| Version | V1 |
| Capacity | 4 units ANTMINER (Hydro) |
| Maximum load, kW | 24 |
| Detailed Characteristics | |
| Hardware configuration | |
| Size (length*width*height), mm (without package) | 1000*600*2100 |
| Size (length*width*height), mm (with package) | 2260*1130*780 |
| Net weight, kg (without package) | 207 |
| Gross weight, kg (with package) | 300 |
| Network connection mode | EJ45 Ethernet 10/100M |
| Power supply | |
| Power supply AC input voltage, Volt(1-1) | 380~415 |
| Power supply AC input frequency range, Hz | 50~60 |
| Power supply AC Input current, Amp(1-2) | 80 |
| Fan | |
| Rated power, W | 120 |
| Noise, dBA@1m | 68 |
| Size (Length*Height*Thickness), mm | 280*280*80 |
| Pump | |
| Rated power, W | 450 |
| Noise, dBA@1m | 55 |
| Size (Length*Height*Thickness), mm | 360*210*268 |
| Plate Heat Exchanger | |
| Maximum heat exchange power, kW | 30 |
| Size (Length*Width* Height), mm | 305*106*64 |
| Diameter of water pipe connector, mm | DN25 |
| Environment requirements | |
| Ambient temperature, °C | 15~45 |
| Water flow, L/min | 32.0~40.0 |
| Water pressure, bar | ≤3.5 |
| Working fluid(1-3) | Antifreeze (10%) |
| Liquid PH | 7.8~8.5 |
| Storage temperature, °C | -20~70 |
| Operation humidity(non-condensing), RH | 10~90% |
NOTE:
(1-1) Caution: Wrong input voltage may probably cause miner damaged.
(1-2) Three-phase AC input.
(1-3) If the water conductivity is ≥100 μs/cm, the fluid must be replaced. The water conductivity is less than 20 μs/cm when the system is running at the first time.

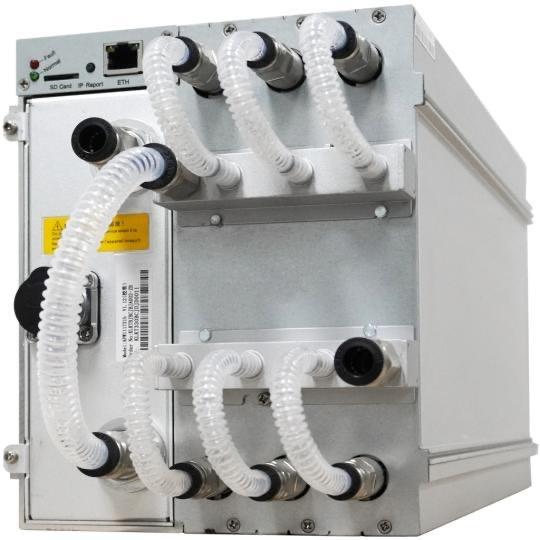

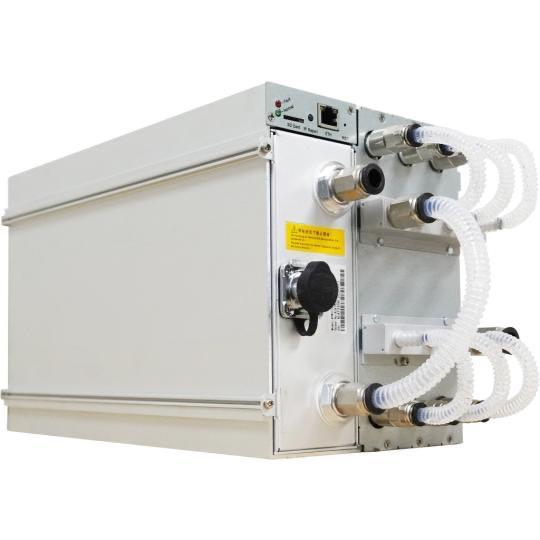

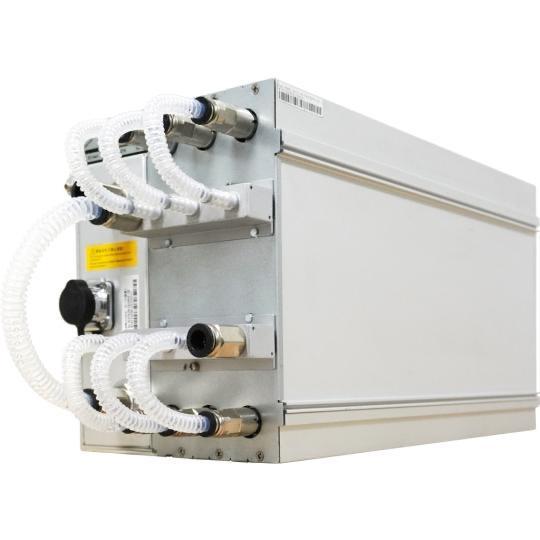

Specification Details For T19 Hyd.
| Product Glance | |
| Model | T19 Hyd. |
| Version | 208-A |
| Algorithm | Cryptocurrency | SHA256 | BTC/BCH/BSV |
| Typical Hashrate, TH/s(1-1) | 138.5 |
| Power on wall @35°C(1-2), Watt(1-1) | 5194 |
| Power efficiency on wall @35°C(1-2), J/TH(1-1) | 37.5 |
| Detailed Characteristics | |
| Power Supply | |
| Power supply AC Input voltage, Volt(2-1) | 342~418 AC |
| Power supply AC Input Frequency Range, Hz | 47~63 |
| Power supply AC Input current, Amp(2-2) | 30 |
| Hardware Configuration | |
| Networking connection mode | RJ45 Ethernet 10/100M |
| Miner Size (Length*Width*Height, w/o package), mm | 410*196*209 |
| Miner Size (Length*Width*Height, with package), mm | 570*316*430 |
| Net weight, kg | 15.2 |
| Gross weight, kg | 17.5 |
| Environment Requirements | |
| Inlet water temperature, °C | 35 |
| Water flow, L/min | 8.0~10.0 |
| Water pressure, bar | ≤3.5 |
| Working fluid(2-3) | Deionized water/Pure water/Antifreeze |
| Storage temperature, °C | -20~70 |
| Operation humidity(non-condensing) , RH | 10~90% |
NOTE:
(1-1) The Hashrate value, Power on wall, and Power efficiency on wall are all typical values. The actual Hashrate value fluctuates by ±3%, and the actual Power on wall and Power efficiency on wall fluctuate by ±5%.
(1-2) Inlet water temperature.
(2-1) Caution: Wrong input voltage may cause server damaged.
(2-2) Three-phase AC input, 10 A per wire.
(2-3) If the water conductivity is ≥100 μs/cm, the fluid must be replaced. The water conductivity is less than 20 μs/cm when the system is running at the first time.
